Question: Draw the Lewis structure for AsF3–Free Chegg Question Answer

Draw the Lewis structure for AsF3
Draw the Lewis dot structure. To change the symbol of an atom, double-click on the atom and enter the letter of the new atom.

Draw the Lewis structure for CH3+. Be sure to show the formal charge on any atom that has a non-zero formal charge.
Draw the Lewis dot structure.

Draw the Lewis structure for BrF3
Draw the Lewis dot structure.

Transcribed text From Image:

Expert Chegg Question Answer:

free chegg question answer
Smart Teacher From Answerie.com
Answer:

Answer

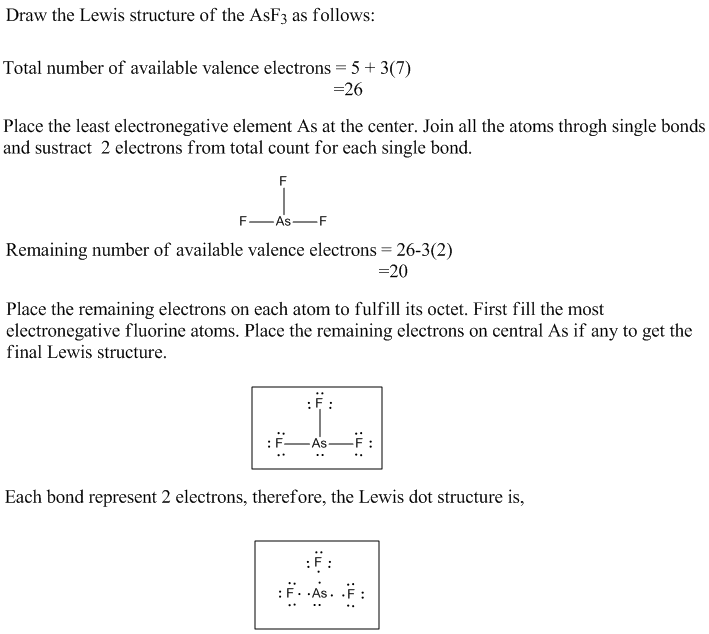

Draw the Lewis structure of the AsF3 as follows: Total number of available valence electrons-5+3(7) Place the least electrone

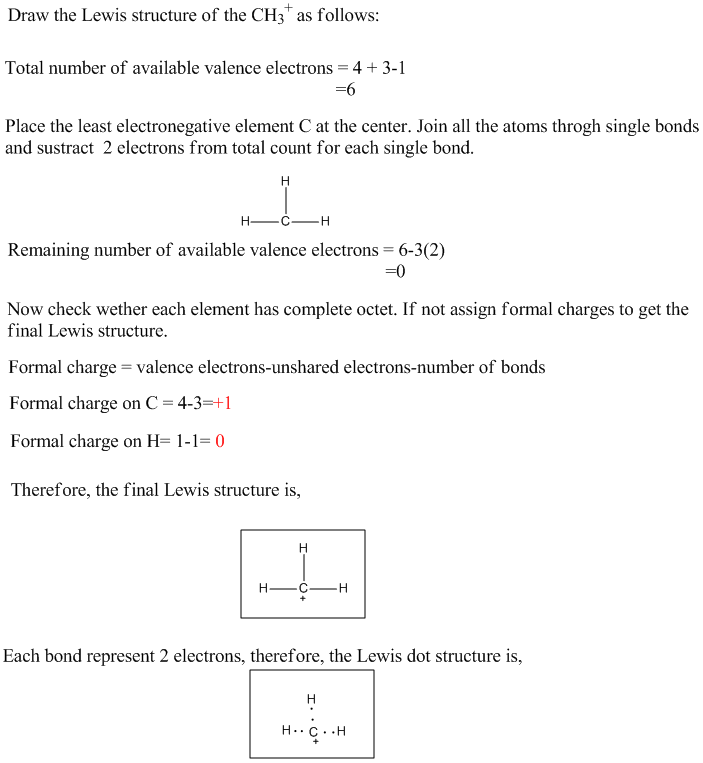

Draw the Lewis structure of the CH3 as follows: Total number of available valence electrons-4+3-1 -6 Place the least electron

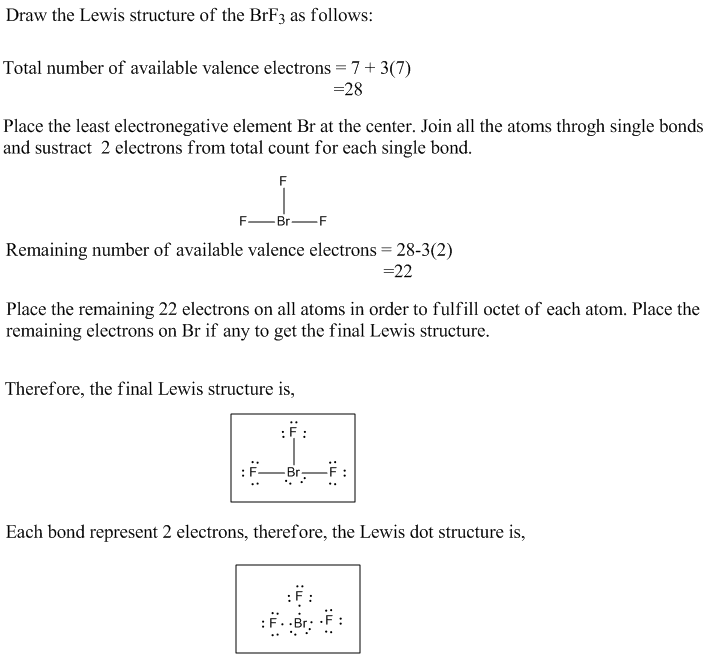

Draw the Lewis structure of the BrF3 as follows: Total number of available valence electrons = 7 + 3(7) Place the least elect
