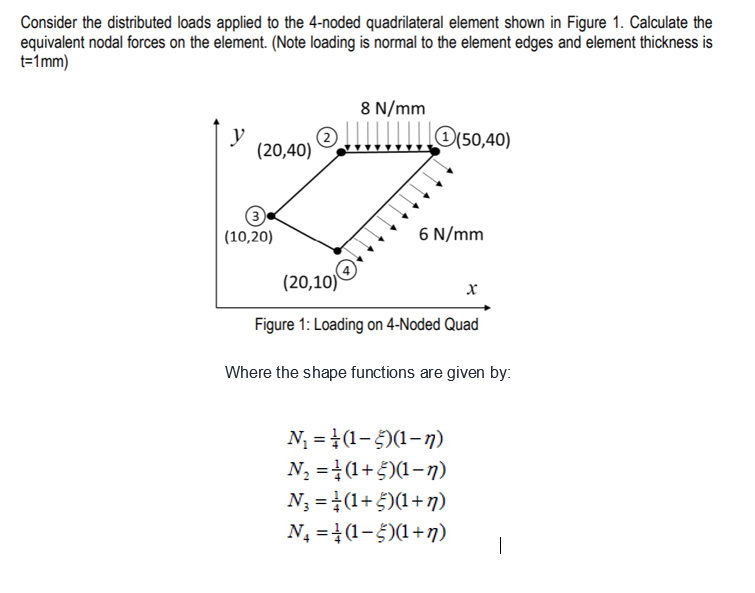

Question: Consider the distributed loads applied to the 4-noded quadrilateral element shown in Figure 1. Calculate the equivalent nodal forces on the element. (Note loading is normal to the element edges and element thickness is t=1mm) 8 N/mm O!!!!!O(50,40) У (20,40) (3 (10,20) 6 N/mm (20,10) х Figure 1: Loading on 4-Noded Quad Where the shape functions are given by: N = (1-5)(1-n) N, =(1+5)(1-n) N; =(1+5)(1+7) N, =4(1-5)(1+7) | – Free Chegg Question Answer

Transcribed text From Image:

Expert Chegg Question Answer:

free chegg question answer
Smart Teacher From Answerie.com

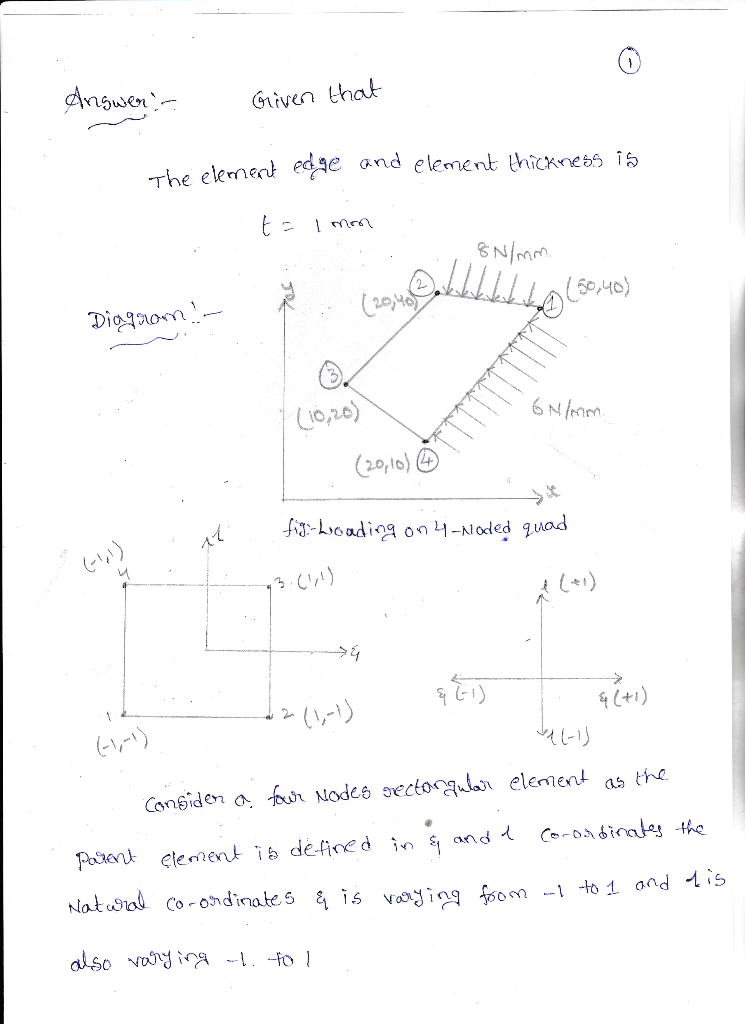

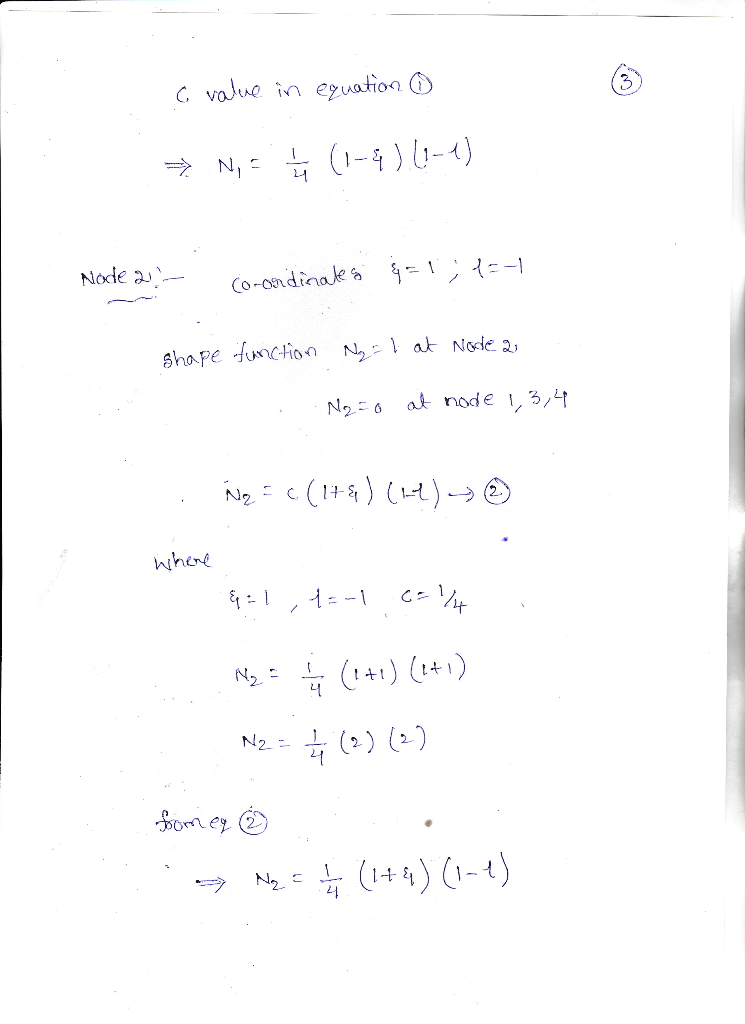

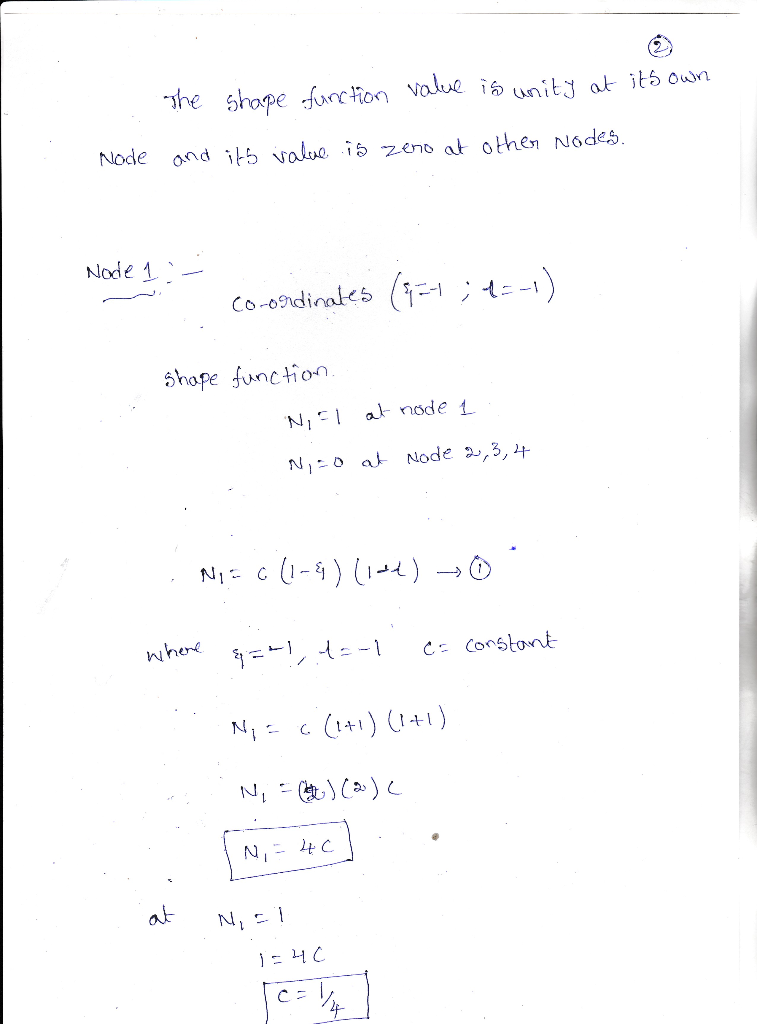

Answer:
