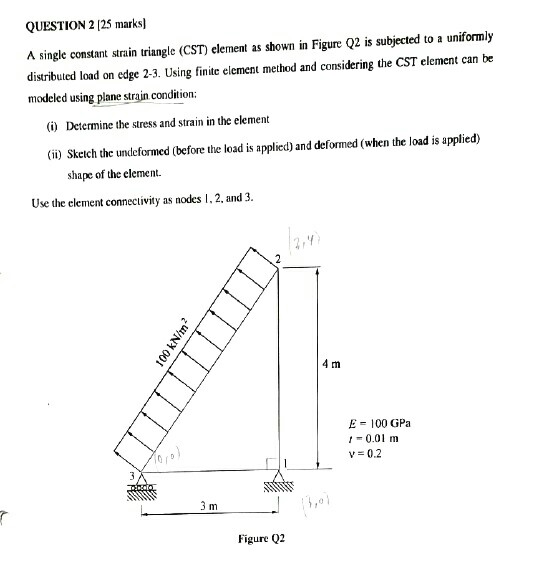

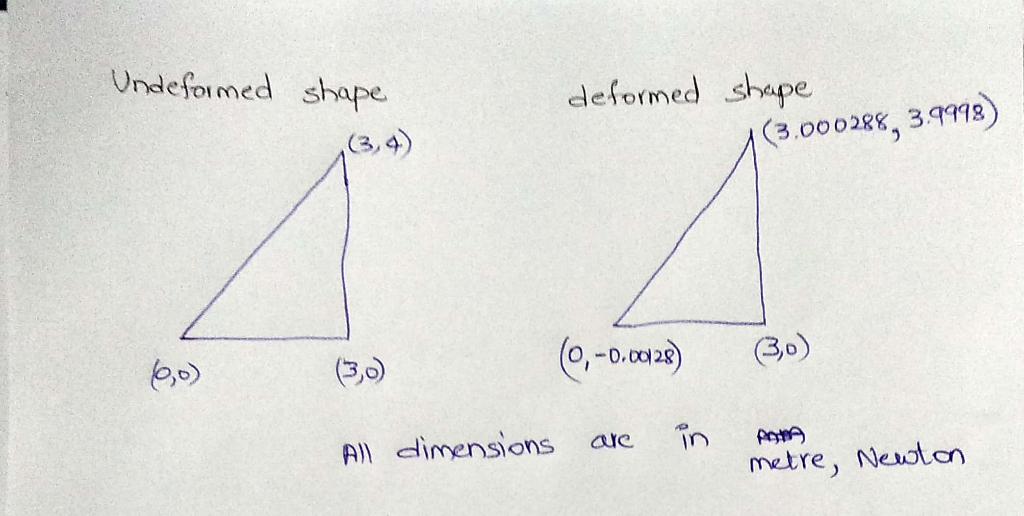

Question: QUESTION 2 (25 marks A single constant strain triangle (CST) element as shown in Figure Q2 is subjected to a uniformly distributed load on edge 2-3. Using finite element method and considering the CST element can be modeled using plane strain condition: (i) Determine the stress and strain in the element (ii) Sketch the undeformed before the load is applied) and deformed (when the load is applied) shape of the element. Use the element connectivity as nodes 1, 2 and 3. 100 kN/m2 E = 100 GPa 1 -0.01 m V= 0.2 ASS Figure Q2 – Free Chegg Question Answer

Transcribed text From Image: QUESTION 2 (25 marks A single constant strain triangle (CST) element as shown in Figure Q2 is subjected to a uniformly distributed load on edge 2-3. Using finite element method and considering the CST element can be modeled using plane strain condition: (i) Determine the stress and strain in the element (ii) Sketch the undeformed before the load is applied) and deformed (when the load is applied) shape of the element. Use the element connectivity as nodes 1, 2 and 3. 100 kN/m2 E = 100 GPa 1 -0.01 m V= 0.2 ASS Figure Q2

Expert Chegg Question Answer:

free chegg question answer
Smart Teacher From Answerie.com

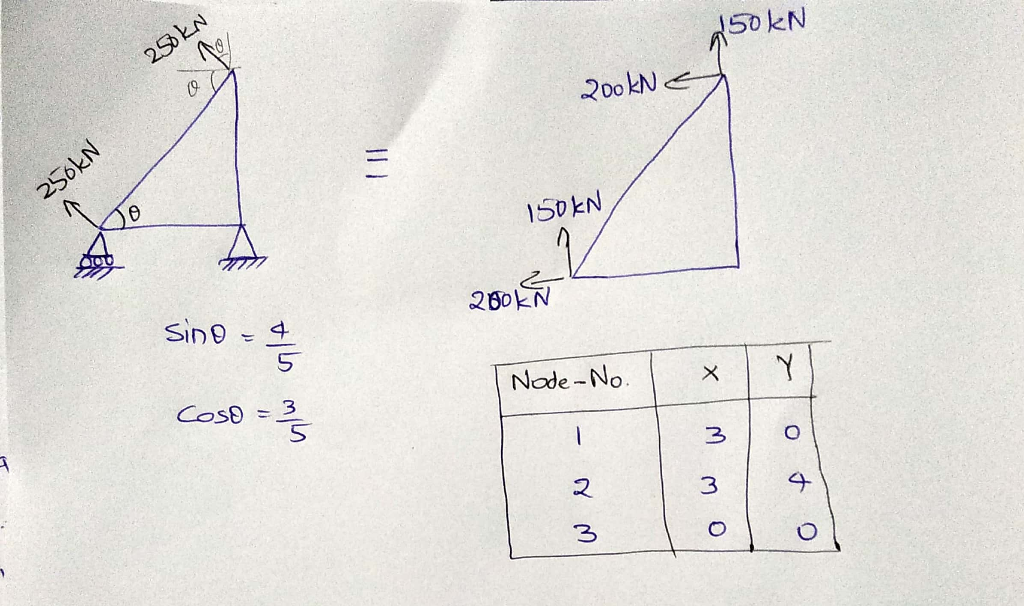

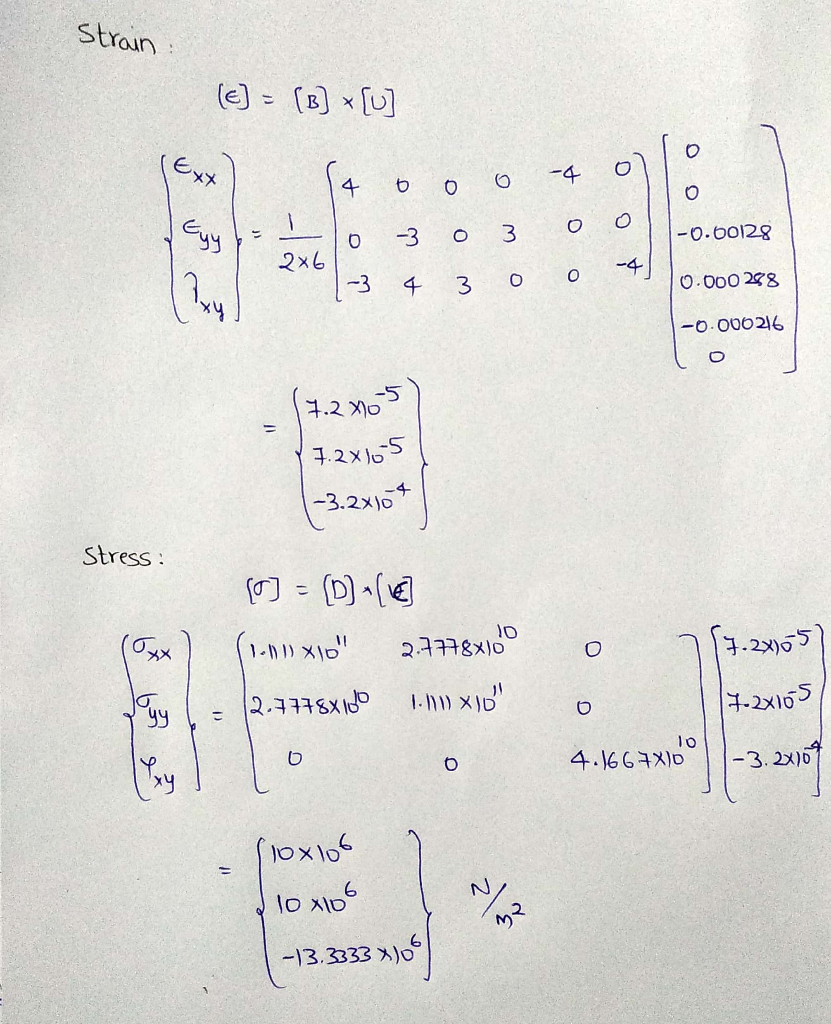

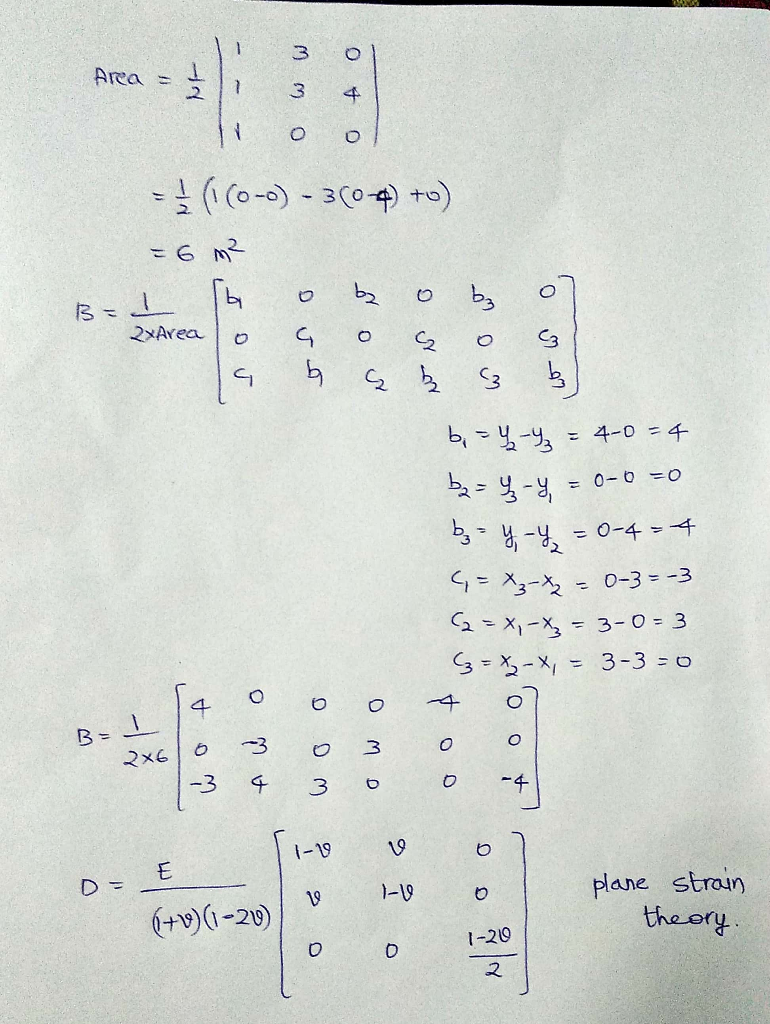

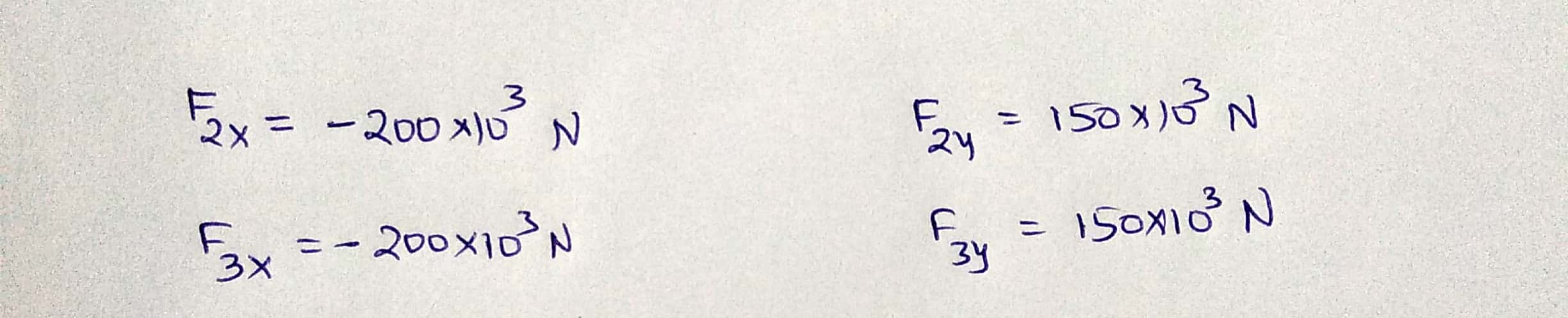

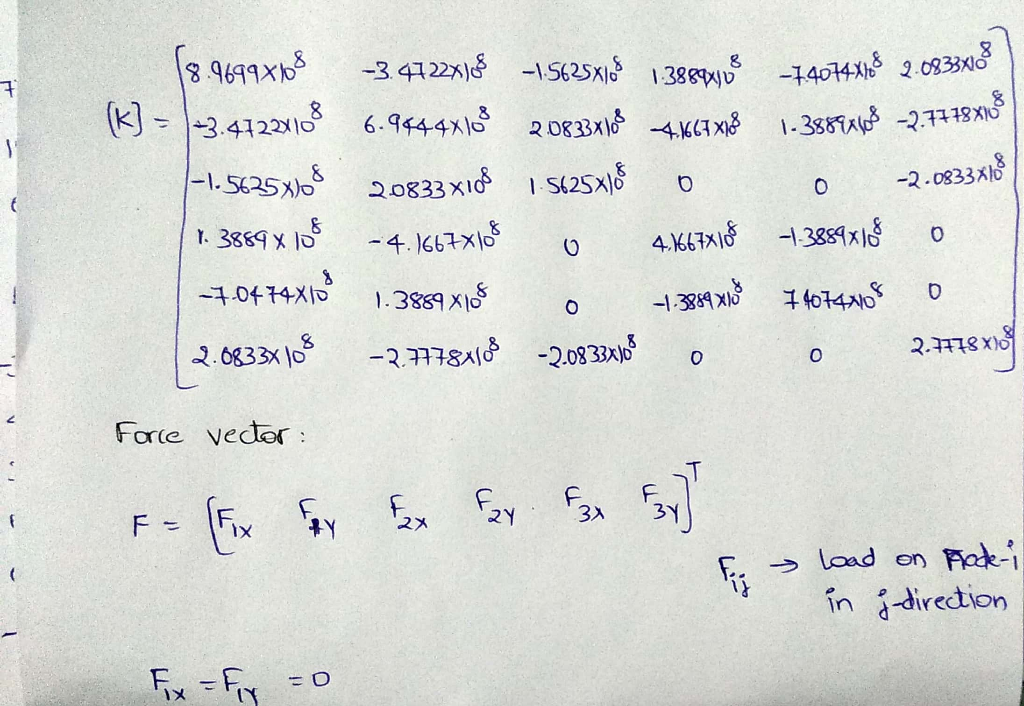

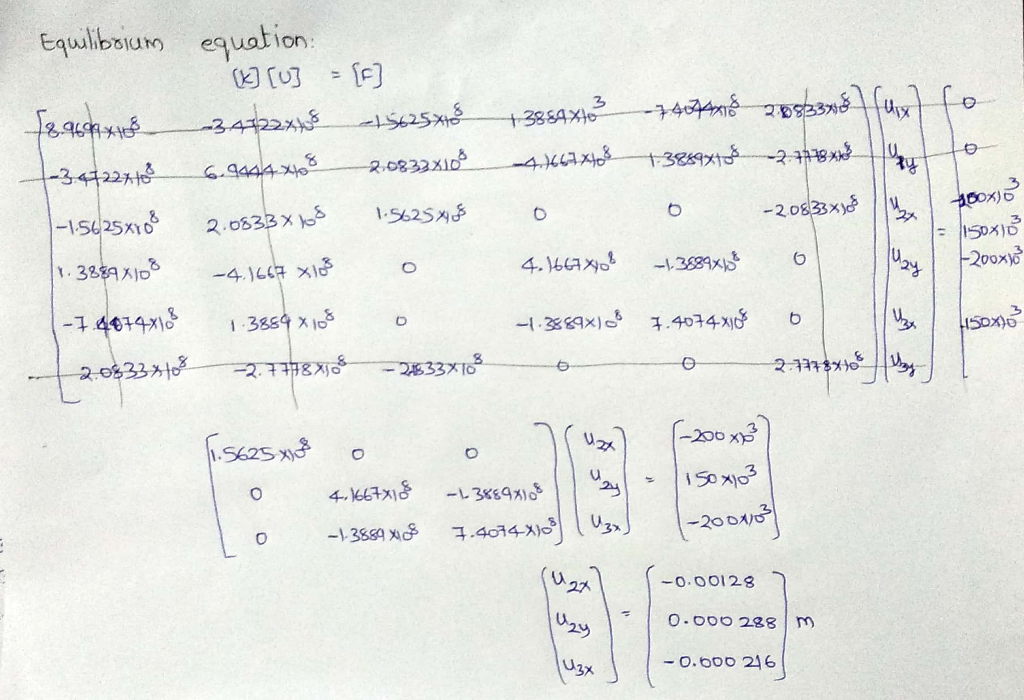

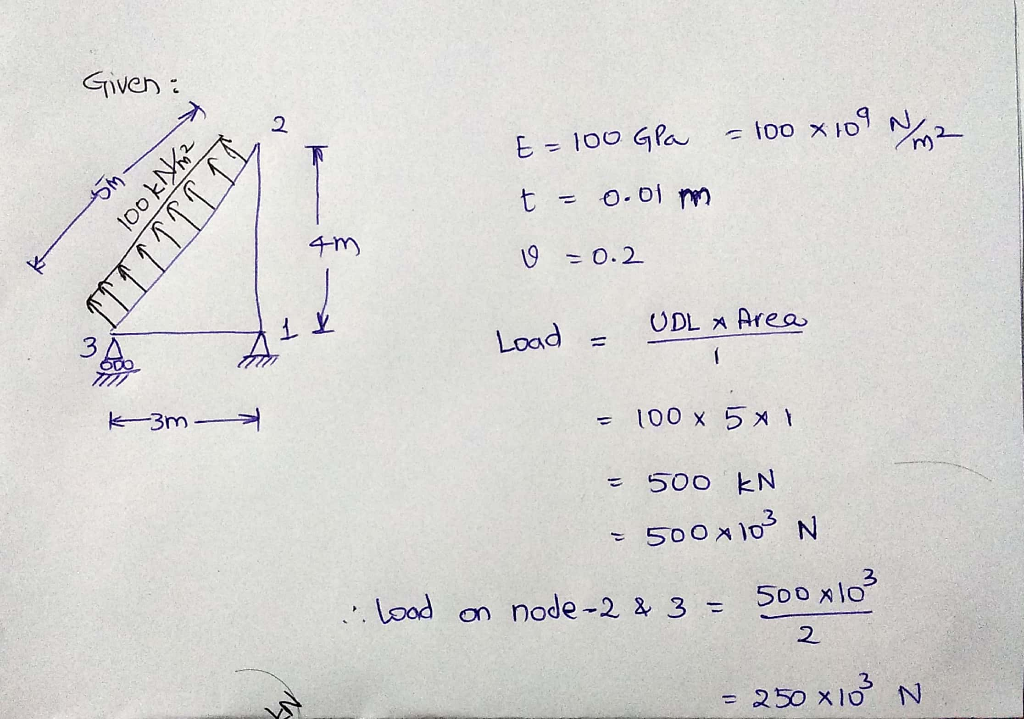

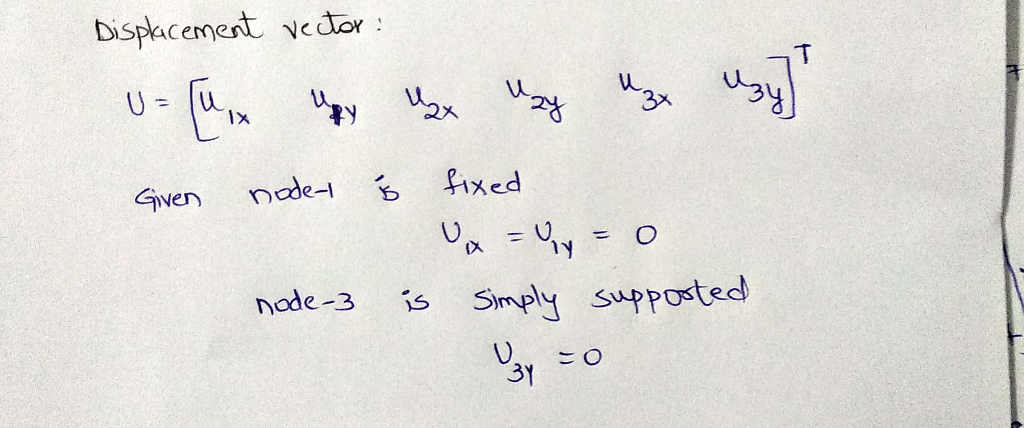

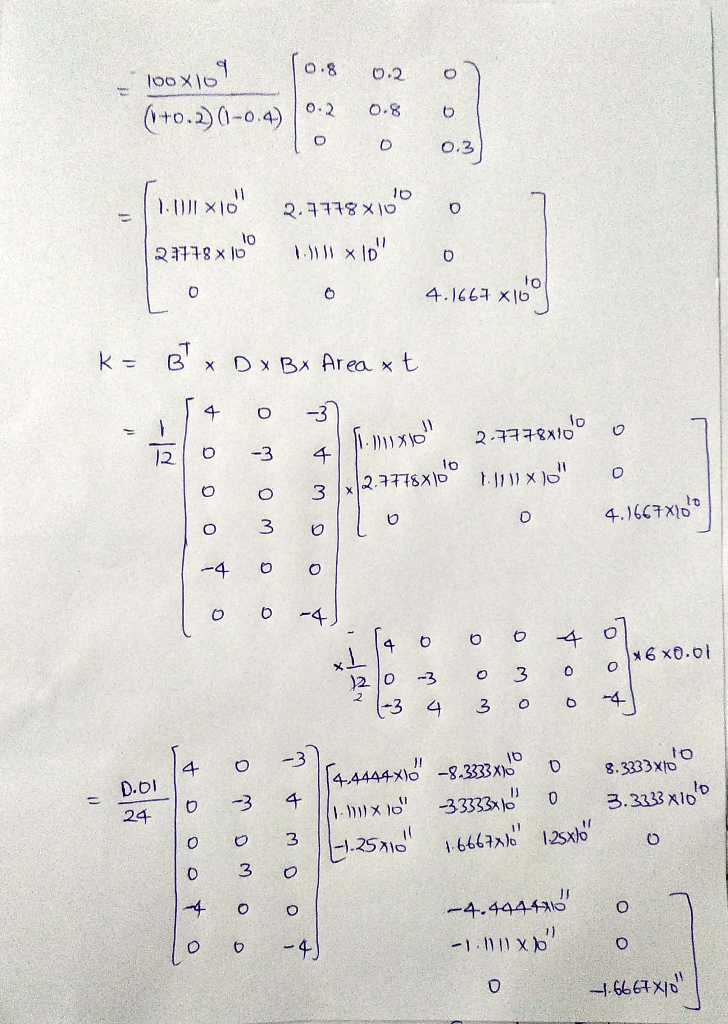

Answer:

Answer


I hope this may help you.
